Build 19 car security and remote sensing

Forum for the Open GPS Tracker

Re: Build 19 car security and remote sensing

Postby Mike » Tue Mar 17, 2009 9:57 am

MCU output to resistor. Resistor to base.
Emitter to ground.
Collector to relay coil.
Relay coil to 12v +.
Diode across relay coil, negative (cathode) to positive 12v side, to absorb inductive transient.

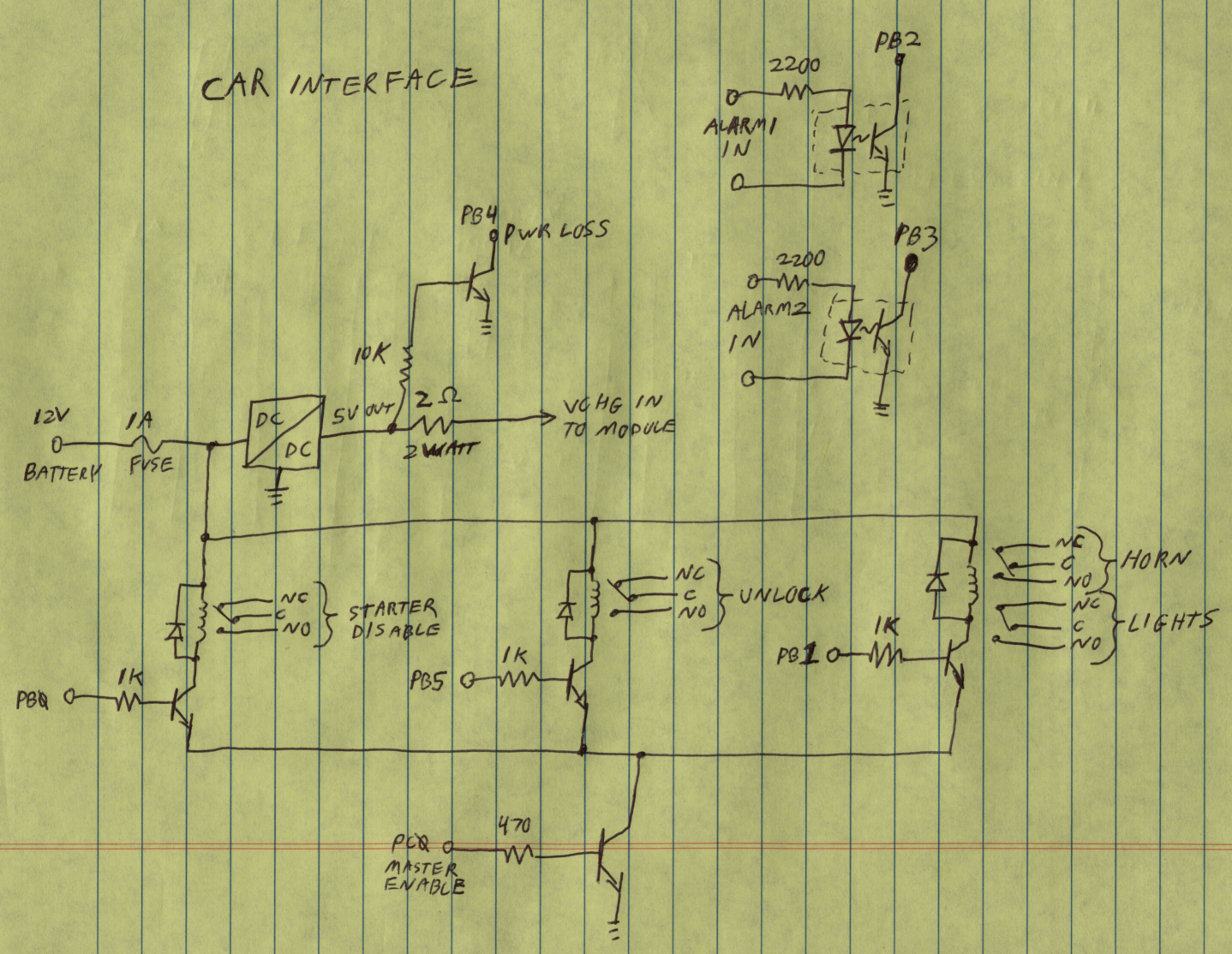

Schematic here:
http://www.opengpstracker.org/car_interface.png
Mike
Site Admin

Posts: 214
Joined: Tue Jun 03, 2008 7:10 am

Re: Build 19 car security and remote sensing

Postby lukec » Sat Mar 21, 2009 3:33 am

Just curious, do you plan on making a PC board for this in the near future?
lukec

Posts: 3
Joined: Thu Mar 19, 2009 3:30 am

Re: Build 19 car security and remote sensing

Postby Mike » Sat Mar 21, 2009 8:30 am

Making PC boards is not my specialty. Someone is welcome to make one, and I will link to it.

Mike
Mike
Site Admin

Posts: 214
Joined: Tue Jun 03, 2008 7:10 am

Re: Build 19 car security and remote sensing

Postby basit212002 » Wed May 13, 2009 4:26 am

Dear Mike,

Hope u'll be fine.
i am using atmega88, mcu is programed perfectly hex file came to be 14kb i am getting reset(31) and phone polled (11) codes but after tht it gives code(13) also. i am using Motorola C168 and Holux GPS.

Dear i have few questions tht i am trying to connect it through hyper terminal i am not getting any response through debug pin as well as plz tell me on wht baud rate to connect or if i am missing something. if possible send me the circuit schematic for at mega88 coz so far i knew i introduced a crystal for atmega88 to work properly.

Thank u for ur guidence.

Best Regards,
basit212002

Posts: 1
Joined: Sat May 09, 2009 11:05 am
